Product Details
System Variants
- Single- and double-leaf
- Telescopic
- With and without fanlight
- With and without side panel
- With and without supporting structure
Technical Details
Maximum Door Dimensions
- Single-leaf clear opening max. W 1,400 mm × H 2,500 mm (Smoke protection only: W 2,197 mm x H 3,057 mm)
- Double-leaf clear opening max. W 2,600 mm × H 2,500 mm (Smoke protection only: W 2,600 mm x H 3,000 mm)
Functionalities
Escape Route Options
- System 3: Emergency button and release rod/Bowden cable
- System 4: Swing-out/swing-in
- Escape route safety device as per SN EN 13637 with SafeRoute
Options
- Smoke protection S200
- Stainless-steel design
- Flush glazing
- Insulating glazing
- Radiation protection
Applications

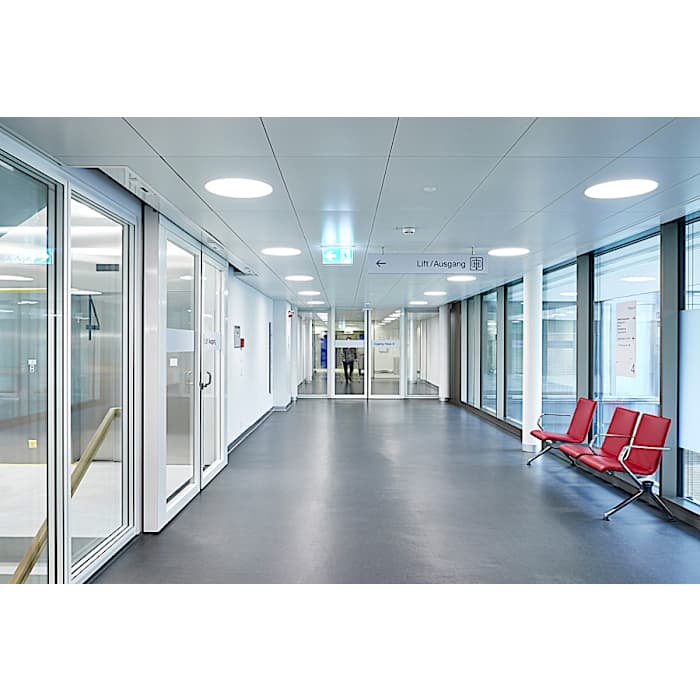

The ST FIRE in steel/glass is especially suitable for use in buildings with high public traffic, such as
- airports
- malls
- hospitals
- educational facilities
