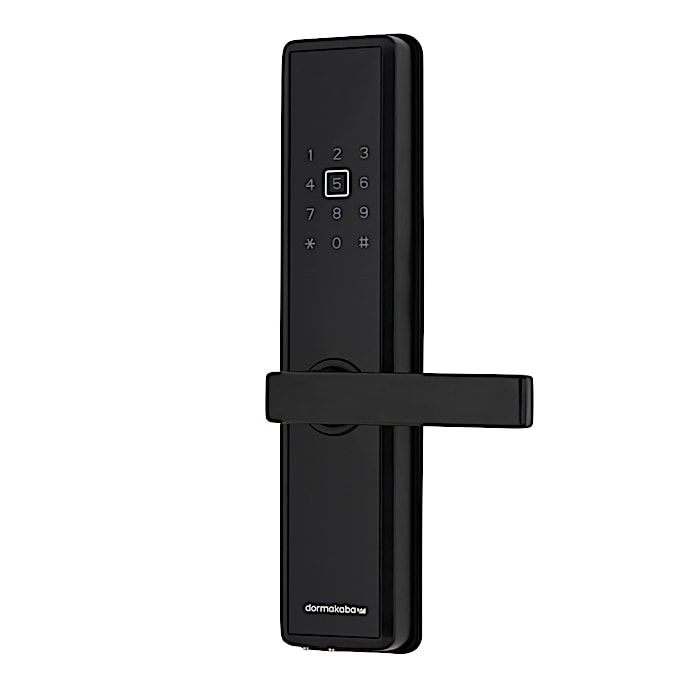

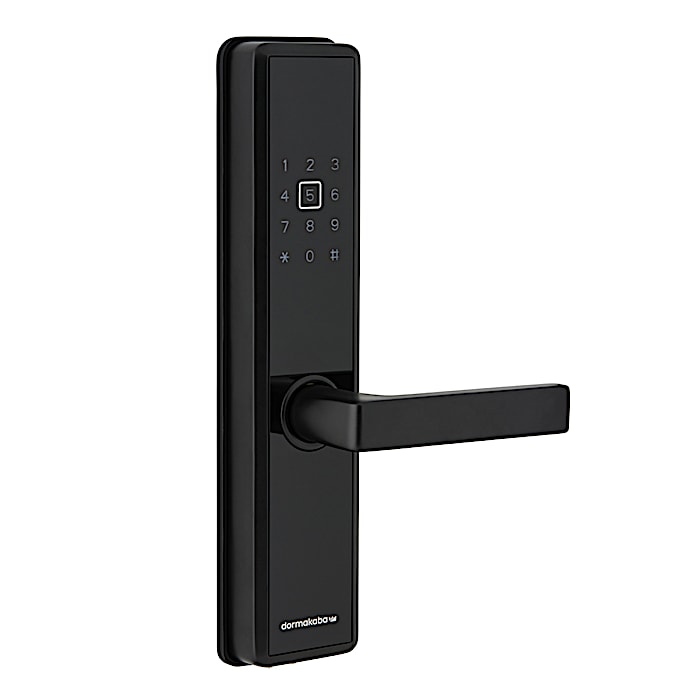

M5 Digital Mortice Door Lock

Designed with elegance, matched with the convenience of the smart features and functions whilst not compromising on security, reliability and performance. Giving you the ultimate control of your home security.

The M5 comes standard with 2 proximity cards, 2 fobs, 3 keys and BLE connectivity. Additional cards/fobs are available from your local M5 distributor.

With the assistance of step by step voice guided programming, setting up and maintaining the M5 is as simple as entering the administrator PIN and following the voice prompts. An RFID Card/Fob can be added as Administrator once programmed.

The M5 is supplied as standard with the Australian style dormakaba MS2602 Series mortice lock providing the reassurance in knowing that by exceeding the highest levels of Australian standard for both mechanical security and durability (AS4145.2).

The M5 is certified to RCM standards under ACMA.

The M5 is truly the best solution for any digital locking solution.

Product Details

Voice guidance in English/Chinese

Low battery alarm

Break-in and tamper alarm

Wrong pin code lockout alarm

Passage mode

One-time password

Password sharing

Scramble password

Unclosed door warning

External emergency battery terminals or mechanical key

Technical Details

Power input 4 x 1.5V AA Alkaline battery

Door thickness 35mm - 50mm

Finish and colour: Black with Matt Black rim Black with Brushed Nickle rim

Keypad: Illuminated 12 keys

Mortice type: Australian style, 60mm backset EN Mortice

Card key: 100 Cards/users

Card configuration: 2 large cards (RFID cards) 2 small cards (fobs)

Pin codes: 10

Mechanical key override: 3 keys included

BLE devices: 10

Length of pin code: 6-12 digits

Mobile Platform: iPhone (iOS 8.0 and above) Android-based Smart phone (Android 5.0 and above)

Temperature (⁰C): -20 to +55⁰

Humidity (%): 0 to 90%, non-condensing

Weather protection: IP54

Dimensions:

External body 65 x 285 x 27.5 mm (W x H x D)

Internal body 65 x 280 x 27.5 mm (W x H x D)

Product Videos

Product Downloads

SmartLock App User Guide
1.18 MB
