Product Summary

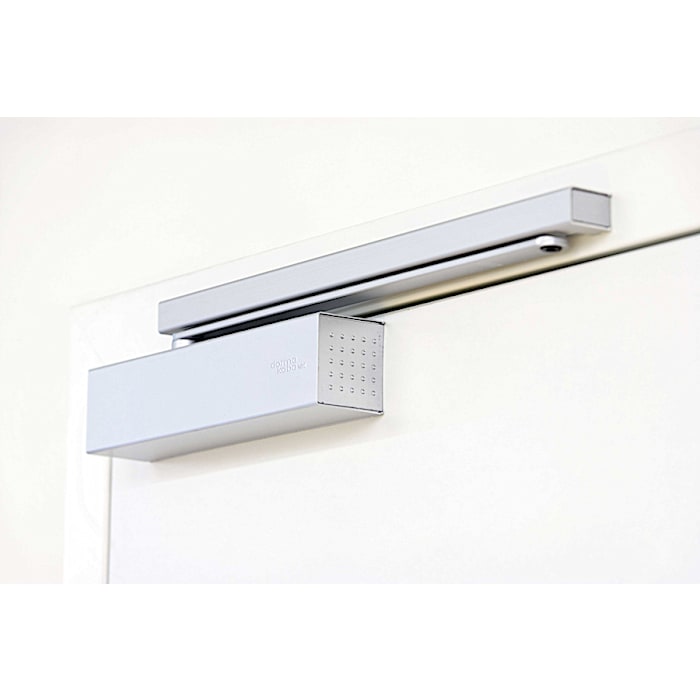

The TS 93 system featuring the Contur design offers virtually every conceivable function for single-leaf and double-leaf doors. The rapidly decreasing opening torque makes it easy to open doors. The delayed closing action supplied as standard provides further convenience, e.g. when carrying objects through doorways. The visually attractive Contur design has received several awards. The electromechanical hold-open function and door selector can be fully incorporated into the TS 93 system. The TS 93 system can be used for door leaf widths of up to 1,600 mm.

  • Perfect solution for all applications
  • Successfully Third Party Tested to BS EN1154
  • CERTIFIRE Approved CF119
  • Suitable for all fixing positions
  • Modular system
  • For single- and double-leaf doors
  • Door widths up to 1250 mm / 1600 mm
  • With adjustable power size, "thinking" backcheck and delayed action

Product Details

The perfect project solution for all applications

The TS 93 door closer system sets new standards in project builds and the tried-and-tested EASY OPEN technology ensures maximum user convenience.
The TS 93 door closer comprises a modular system which enables just a few door closer models to be combined with a number of different slide channels to meet virtually every conceivable functional requirement. Doors of varying designs can be equipped for a wide range of different applications.

Barrier-free design

The TS 93 EN 2-5 is ideal for barrier-free doors in accordance with BS8300 and relevant Buidling Regulations in the UK. The TS 93’s EASY OPEN technology ensures the door can be opened easily and conveniently (resistance decreases almost instantly as door opens), and thus enabling doors to meet the opening force requirements of BS8300 and UK Building Regulations for single-leaf and double-leaf doors.

As a hold-open device the TS 93 system is naturally suitable for barrier-free buildings. The thinking backcheck ensures no increase in the opening resistance when the door is opened in the correct manner, additionally the delayed closing, supplied as standard, allows easy unhindered passage through doorways.


The TS 93 system is manufactured in line with the latest standards and features a voluntary environmental product declaration (EPD) in accordance with German Industrial Standard (DIN) ISO 14025, which is available in the download area. The availability of EPDs facilitates the achievement of building certifications, such as DGNB and LEED.

dormakaba TS 93 Cam Action Door Closer System - Slide Channel
dormakaba TS 93 Cam Action Door Closer System - Slide Channel
dormakaba TS 93 Cam Action Door Closer System - Slide Channel
