QTL200

Name: QTL200
Brand: dormakaba
SKU: DK_13106

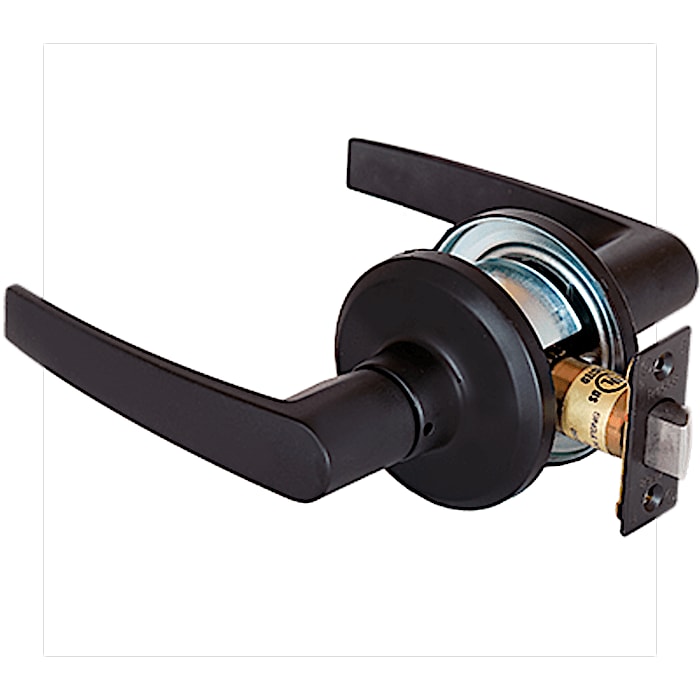

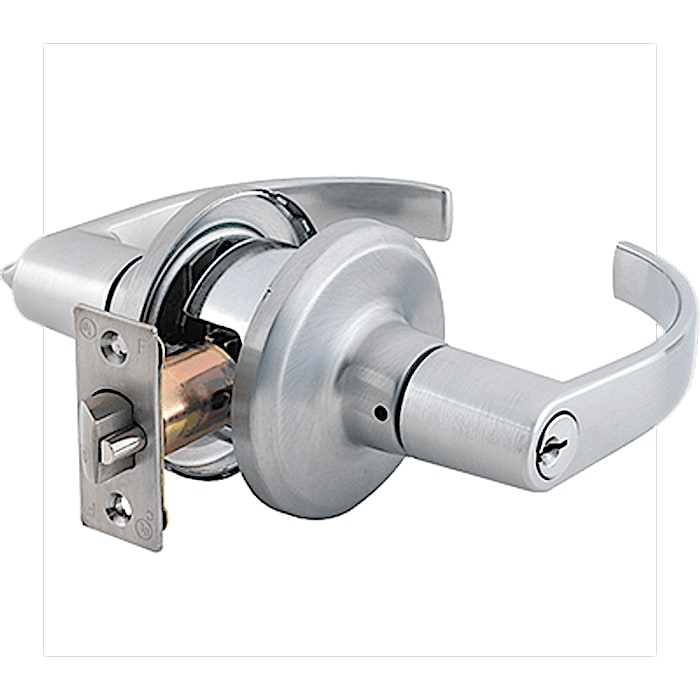

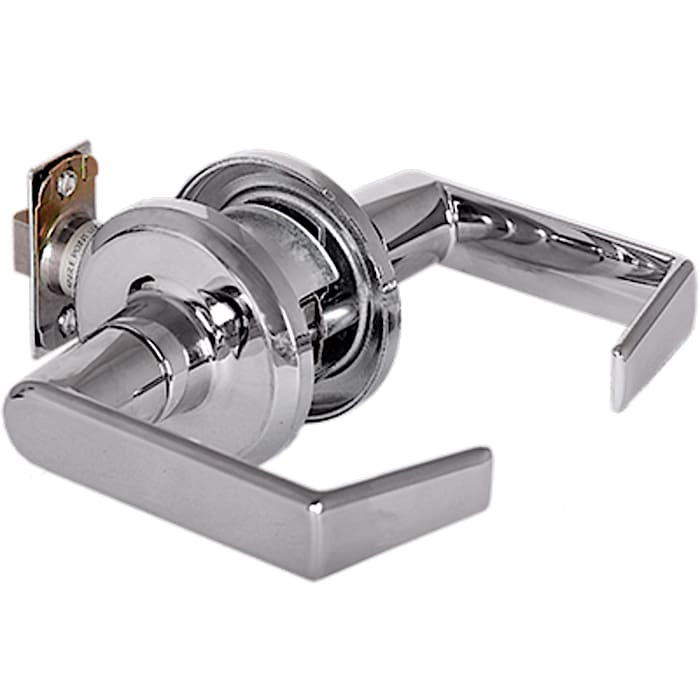

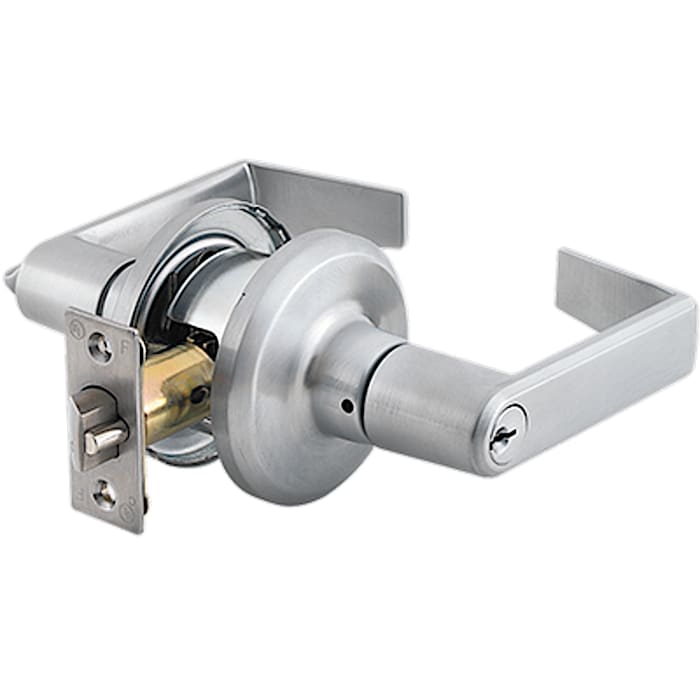

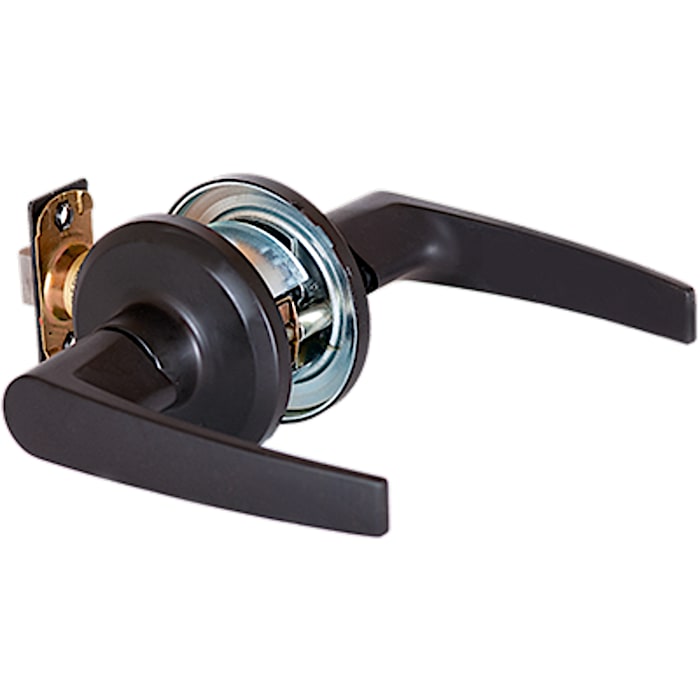

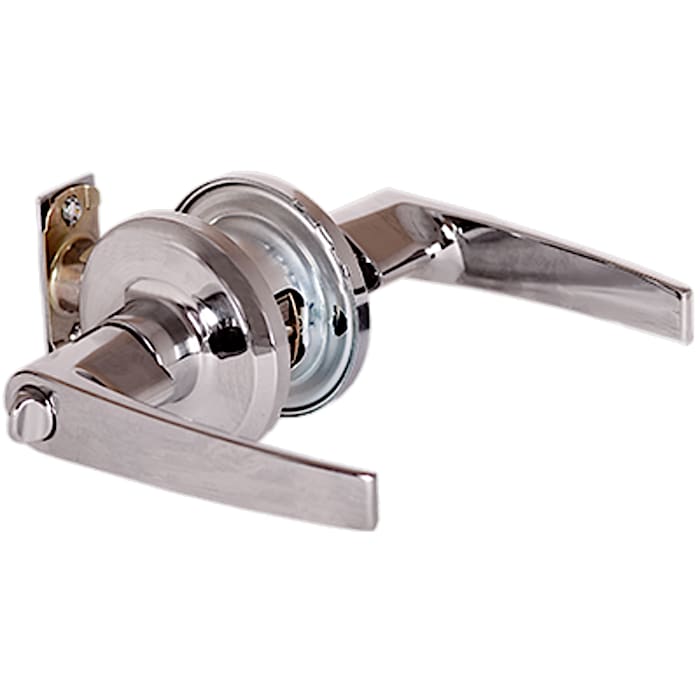

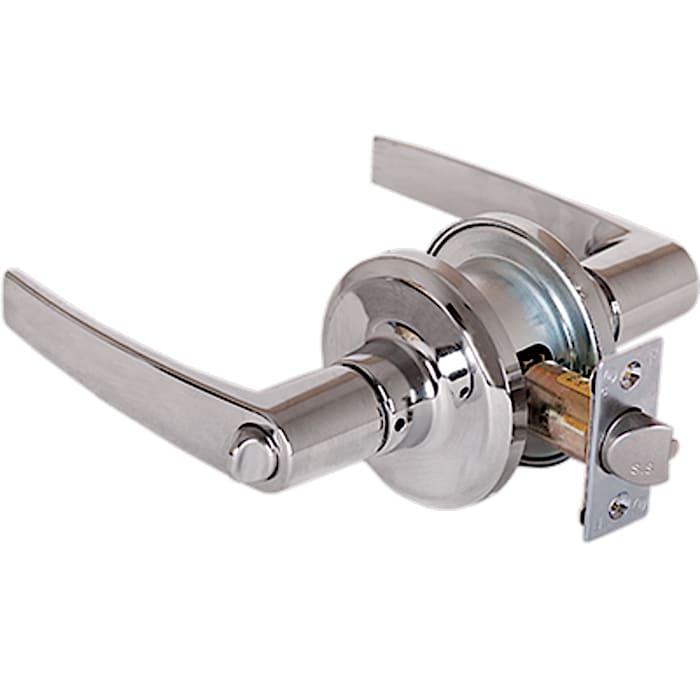

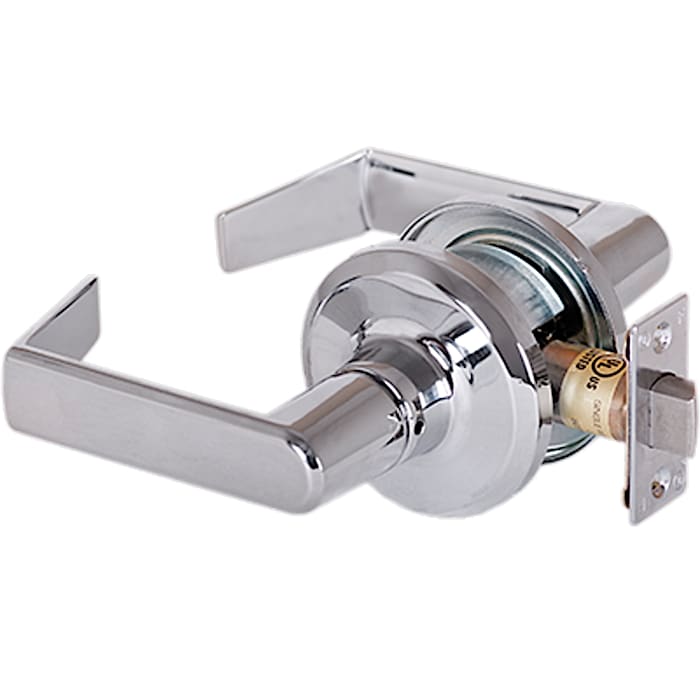

The dormakaba Commercial Hardware QTL200 Series is a tubular lever lock, ANSI/BHMA (American National Standards Institute/Builders Hardware Manufacturers Association) A156.2 Grade 2 certified and listed, for standard duty doors in light commercial applications. The QTL200 Series provides a solid value lever lock with design features that make installation and retrofitting simpler throughout the product's lifespan.

From design to construction to packaging, the QTL200 Series meets the demands of a wide range of applications, with EasyPass lever rotation for easier operation and round and square corner latch faces and strikes for flexible stocking. It is UL/cUL (Underwriters Laboratories) listed for up to 3 hour ""A"" label doors.

Fewer parts and compartmentalized packaging for quick and easy installation
Available in 6 functions
3 lever styles
Available in 5 finishes
Non-handed: simply flip the lock around to fit the application
EasyPass lever rotation for easier operation
Limited lifetime mechanical warranty, 3 year finish warranty and 1 year electrical warranty

Product Details

Security

Durable Grade 2 mechanical locks.

Value

An affordable price that allows you to add quality hardware to every interior door.

Style

Available in popular designs and finishes.

Ease

EasyPass lever rotation for easier operation.

Installation and application

Round and square corner latch face and strikes for flexible stocking and a wider range of applications.

Functions

Dummy, Passage, Privacy and Entry.

Technical Details

Certifications

ANSI/BHMA A156.2 Grade 2 certified and listed
ANSI A117.1 Accessibility Code, ADA (Americans with Disabilities Act) compliant
UL/cUL listed for up to 3 hour "A" label doors
UL10C/UBC7 positive pressure rated

Product specifications

Standard door thickness: 1-3/8 in. to 1-3/4 in. (35 mm to 44 mm)
Backset: 2-3/4 in. (70 mm) or 2-3/8 in. (60 mm) standard
Strike: full lip strike standard, 2-1/4 in. x 1-3/4 in. (57 mm x 44.4 mm); other strike options available
Latch bolt: 1/2 in. (13 mm) steel throw
Latch faceplate: 1 in. x 2-1/4 in. (25.4 mm x 57 mm) standard
Keyways: BEST "F"SFIC, Kwikset "KW", Weiser "E", Schlage "C", Yale "GA" and Sargent "LA"
