QDB200

Name: QDB200
Brand: dormakaba
SKU: DK_13103

The dormakaba Commercial Hardware QDB200 Series is a standard duty Grade 2 deadbolt, ANSI/BHMA (American National Standards Institute/Builders Hardware Manufacturers Association) Grade 2, with built-in features for attack resistance. In addition to quality materials and construction, it has components to resist saw, drill and wrench attacks.

The QDB200 Series makes it easy to order, customize, install and maintain a standard duty deadbolt for a wide range of applications. It is UL/cUL (Underwriters Laboratories) listed for 3 hour "A" label single doors, has an ADA (Americans with Disabilities Act) compliant thumb turn, and is available with an indicator that shows from the exterior whether the door is locked or unlocked.

ADA turn lever

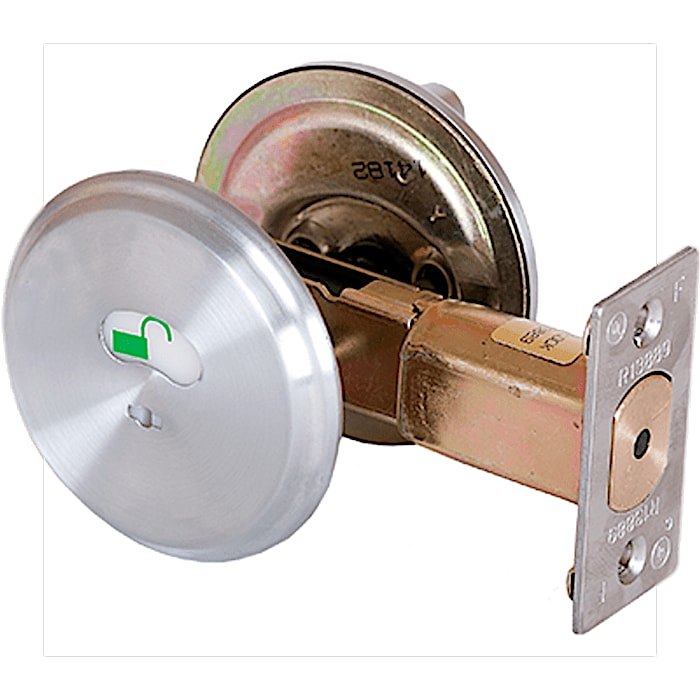

Available with lock/unlock indicator
Solid forged housing
1 in. (25 mm) latch bolt with steel roller pin for saw resistance
Available in 5 finishes: 605, 613, 619, 625 and 626
Available with BEST “F” SFIC, Kwikset “KW”, Weiser “E”, Schlage “C”, Yale “GA” and Sargent “LA” keyways
Can also be ordered with a Re-Key keyway

Product Details

Security

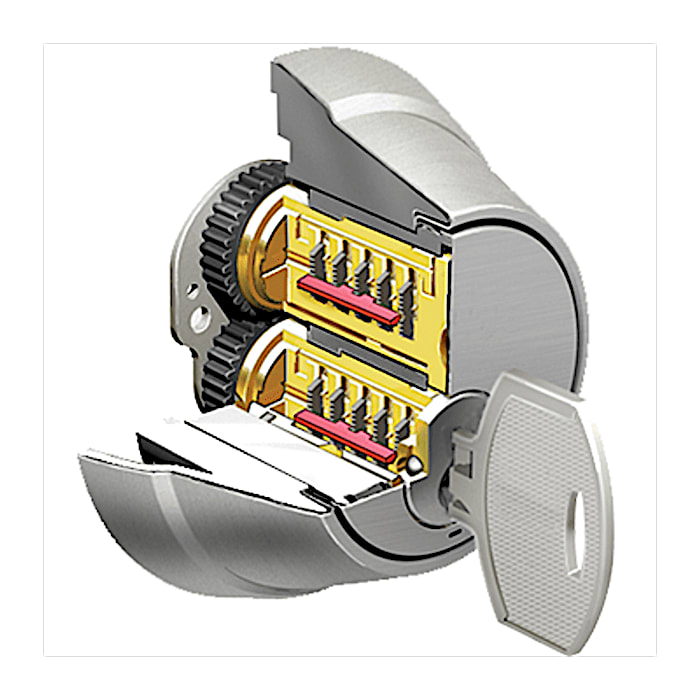

This ANSI/BHMA Grade 2 lock has a solid forged housing, a full 1 in. (25 mm) hardened steel throw bolt with a roller pin for saw resistance, and an anti-drill design with two ball bearings for drill resistance on non-IC (non-interchangeable core) cylinders.

Easy to retrofit

Choose the small format interchangeable core (SFIC) option, or keep your existing small format cores and use them with QDB200 Series products. Standard door prep makes retrofit quick and easy.

Simple to install

Compartmentalized packaging makes QDB200 deadbolts easier to install.

Additional security features

Depending on the application, options such as hurricane compliance add a layer of reliability and security.

Warranty

Limited lifetime mechanical warranty
3 year finish warranty

Technical Details

Certifications

ANSI/BHMA A156.12 Series (1999), Grade 2
ANSI A117.1 Accessibility Code (ADA compliant)
UL/cUL listed (3 hour) for "A" label single door applications, 4 ft by 8 ft (1220 mm by 2440 mm), UL10C/UBC 7-2 (1997) positive pressure rated
UL10B pressure rated
Hurricane compliant: Miami-Dade N.O.A.
ADA compliant thumb turn

Product specifications

Exposed trim: stainless steel with iron forged cylinder guard
Door range: 1-3/8 in. to 2 in. (35 mm to 51 mm); service part 8Q00082 spacer rings required for 1-3/8 in. (35 mm) doors
Backset: 2-3/4 in. (70 mm) square standard; 2-3/8 in. (60 mm) available
Strike: standard deadbolt strike 1-1/8 in. x 2-3/4 in. (29 mm x 70 mm); other options available
Door prep: 2-1/8 in. (54 mm) diameter cross bore
Latch bolt: full 1 in. (25.4 mm) throw with hardened steel roller
Latch faceplate: 1-1/8 in. x 2-1/4 in. (29 mm x 57 mm) standard; 1 in. x 2-1/4 in. (25.4 mm x 57 mm) available

Applications

Available with an indicator that clearly identifies whether the door is locked or unlocked from the exterior.

The QDB200 can be found in applications such as rest stop and state park restrooms, storage rooms, commercial office spaces and residential applications. The deadbolt is commonly used together with cylindrical locks to provide an extra level of security.
