QCI200

Name: QCI200
Brand: dormakaba
SKU: DK_13104

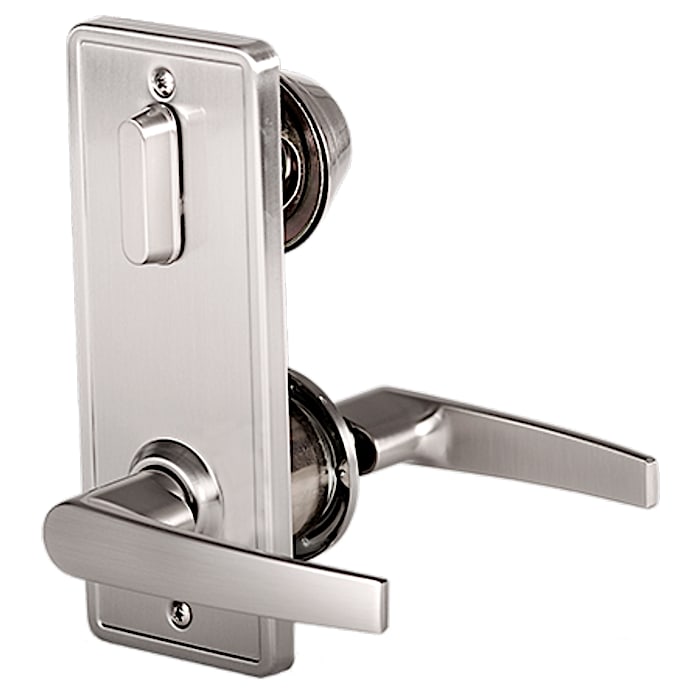

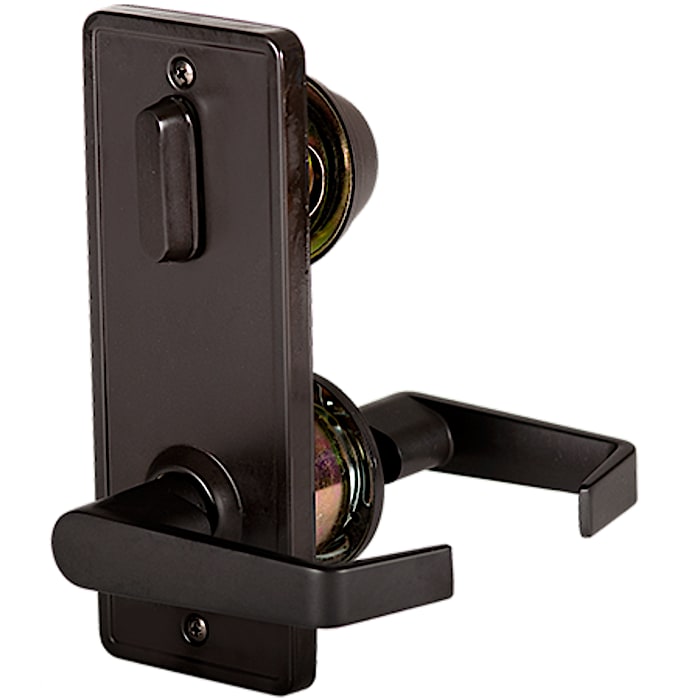

The dormakaba QCI200 Series is an interconnected lock, ANSI/BHMA (American National Standards Institute/Builders Hardware Manufacturers Association) A156.12 Grade 2, that provides single motion egress for standard duty applications: one turn of the lever retracts both the latch and the deadbolt.

When you need options for easy emergency exit, the QCI200 Series offers a lower cost alternative to mortise locks and includes features such as an ADA (Americans with Disabilities Act) compliant thumb turn to support compliance with building codes.

The QCI200 lock is designed with a cylindrical body for robust performance and security, with saw and drill resistant construction, enhanced security functions and easy-to-use operation.

Internal mechanism retracts both the latch and the deadbolt with a single turn of the lever
ADA thumb turn and lever trim
Saw and drill resistant
3 lever styles: Sierra, Summit and Slate
Can be ordered with a small format interchangeable core (SFIC) or as less cylinder
Non-handed
Limited lifetime mechanical warranty and 3 year finish warranty

Product Details

Durable and secure

Construction features such as cylindrical lock bodies, enhanced deadbolts, stainless steel cartridges between levers and deadbolts, and 1 in. (25 mm) deadbolt latches with hardened steel roller pins make QCI200 Series interconnect locks durable and attack resistant. Features such as the ADA thumb turn keep QCI200 locks compliant with current building codes.

SmartKey™ technology

The QCI200 Series comes with an optional re-key system that allows simple re-keying without changing or removing anything from the door.

Warranty

The QCI200 Series is backed by a limited lifetime mechanical warranty and a three year finish warranty.

Easy to retrofit

Choose an SFIC option, or keep existing small format cores and use them with QCI200 Series products.

More options

Add a lock/unlock deadbolt status indicator, and single locking or double locking options.

Simplified installation

Compartmentalized packaging makes QCI200 locks easier to install, and tapered deadbolt latches make installation on even warped doors simpler.

Technical Details

Certifications

ANSI/BHMA A156.12 Series (1999), Grade 2
ANSI A117.1 Accessibility Code (ADA compliant)
UL/cUL (Underwriters Laboratories) listed (3 hour) for "A" label single door applications, 4 ft by 8 ft (1220 mm by 2440 mm), UL10C/UBC 7-2 (1997) positive pressure rated
UL10B pressure rated

Specifications

Exposed trim: wrought brass or bronze with cast zinc lever
Door range: 1-3/8 in. to 1-3/4 in. (35 mm to 44.5 mm)
Center-to-center: 4 in. (102 mm)
Backset: 2-3/4 in. (70 mm) square standard; 2-3/8 in. (60 mm) available
Strike: "T" strike 1-1/8 in. x 2-3/4 in. (29 mm x 70 mm) standard for the lever; deadbolt strike 1-1/8 in. x 2-3/4 in. (29 mm x 70 mm) standard; other options available
Door prep: 2-1/8 in. (54 mm) diameter cross bore
Latch bolt: keyed 1/2 in. (13 mm) steel throw with auxiliary latch (deadlocking latch); passage 1/2 in. (13 mm) spring latch
Deadbolt latch: 1 in. (25 mm) with hardened steel roller pin
Latch hole: 1 in. (25 mm) diameter edge bore
Rose diameter: 2-1/2 in. (63 mm)
Inside escutcheon: 3 in. x 8 in. (76 mm x 203 mm)
Optional exterior escutcheon: 3-1/4 in. x 8 in. (83 mm x 203 mm)
Keyways: BEST "F" SFIC, Kwikset "KW", Weiser "E", Schlage "C", Yale "GA" and Sargent "LA"
Finishes: 605, 613, 619 and 626
