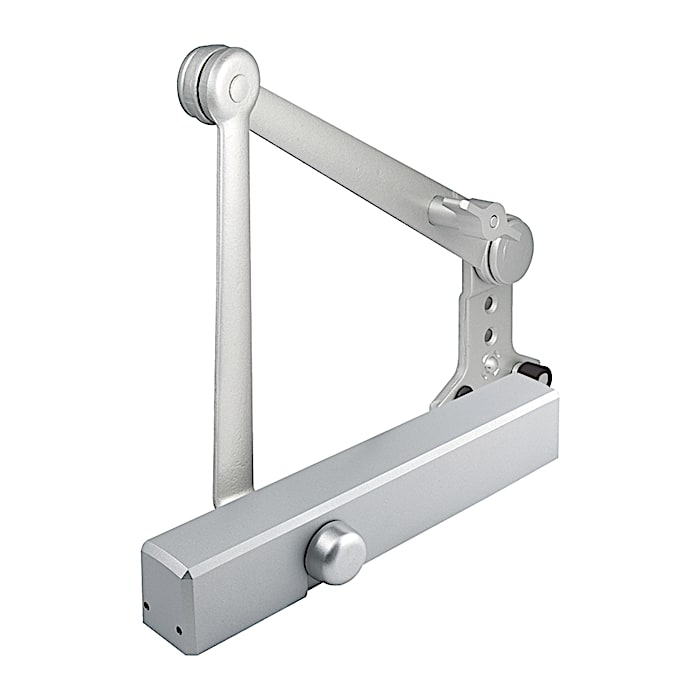

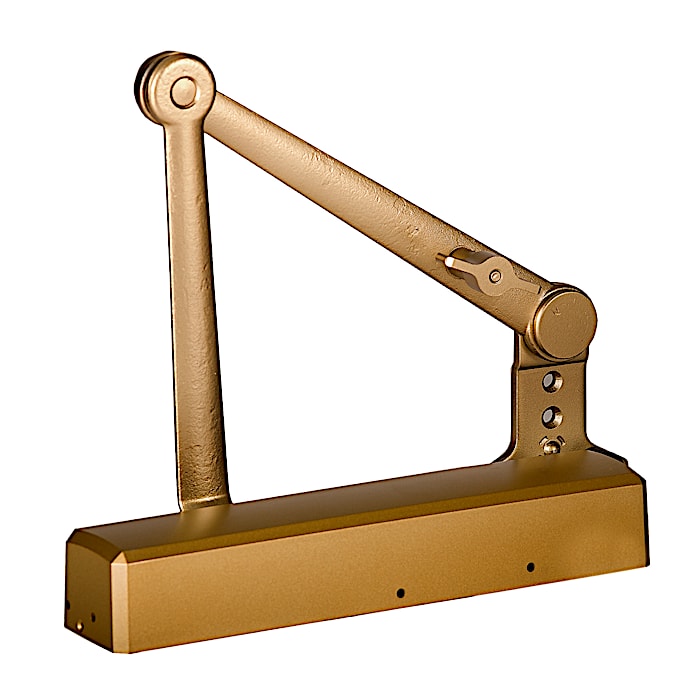

QDC200 Series Heavy-Duty Grade 1 Door Closers

Name: QDC200 Series Heavy-Duty Grade 1 Door Closers
Brand: dormakaba
SKU: DK_546

The dormakaba Commercial Hardware QDC200 Series is a heavy duty storefront door closer, ANSI/BHMA Grade 1 certified (American National Standards Institute / Builders Hardware Manufacturers Association), for narrow top rail doors in high use areas. The closers allow flexibility for indoor or outdoor use, accommodate reduced rail heights and come with options to keep the entry point compliant with Americans with Disabilities Act (ADA) force requirements, in a slim design.

Non-handed and offered with a range of arm, stop and finish options, the QDC200 closers are simple to install and retrofit. Delayed action and a backcheck valve are standard, and all-weather fluid makes the fully adjustable closers usable on interior and exterior doors.

Two arm types are offered, a tri-pack arm and a heavy duty arm, in finishes 689, 690 and 696. The QDC200 has the same footprint as the Norton 8000 series, so an exchange needs no door re-prep. Limited lifetime mechanical warranty, 3 year finish warranty.

Flexibility for indoor or outdoor use
Accommodates reduced rail heights on narrow top rail doors
Retrofit-compatible: same footprint as the Norton 8000 series
Slim design
Non-handed, with a range of arm, stop and finish options
Two arm types: tri-pack arm and heavy duty arm
Available in 3 finishes: 689, 690 and 696

Product Details

Security

ANSI/BHMA Grade 1 certified. Security performance options such as delayed action and a backcheck valve come standard with the QDC200 Series.

Construction

The QDC200 Series is engineered to be fully adjustable and usable on both interior and exterior doors. Because it has all-weather fluid, is non-handed and equipped with a variety of feature options, the QDC200 is easy to stock and use in a wide variety of applications.

Warranty

Limited lifetime mechanical warranty
3 year finish warranty

Technical Details

Certification: ANSI/BHMA Grade 1 certified
Use: interior and exterior doors; narrow top rail doors with reduced rail heights
Fluid: all-weather fluid
Standard functions: delayed action, backcheck valve
Accessibility: options for ADA force requirements
Handing: non-handed
Arms: tri-pack arm or heavy duty arm; range of arm and stop options
Finishes: 689, 690, 696
Retrofit: same footprint as the Norton 8000 series
Warranty: limited lifetime mechanical, 3 year finish
