Product Summary

The modular electronic safe lock Axessor is a lock system with up to 14 locks that can be operated both individually and in conjunction with several thousand lock systems.

It can be used wherever organizational flexibility, fast response and increased security are required. Axessor IP may be configured remotely. This allows mass adjustment of customers needs by modifying additional settings.
Software download: http://go.dormakaba.com/AS284

It is the ideal safe lock for organizations with large branch networks, such as banks, post office, retail and restaurant chains.

Product Details

Approvals/Certificates
EN 1300 level B, VdS Class 2, UL Type 1, ECB●S, A2P
VdS bolt switch for alarm systems class C

Codes

  • 1 Master code
  • 4 Manager codes
  • 36 User codes
  • 1 Courier code

Access Rights

  • Selectable access by managers and users for immediate locking
  • Selectable lock opening by master and manager
  • Selectable manager access to users of all groups

Event history/Audit

  • Audit with time stamp (10000 events)

Alarm Connection

  • Outputs
    • 2 Outputs (e.g. bolt position, duress alarm, additional trigger criteria programmable). Selectable polarity (NO or NC)*
  • Inputs
    • 2 Inputs (e.g. door contact, remote blocking, additional trigger criteria programmable). Selectable polarity (NO or NC)*

Power Supply

  • Battery and/or external power supply

Input Unit

  • Metal housing in black
  • Silicon rubber keypad with red navigation keys
  • Integrated battery compartment
  • Large, contrasted LC display
  • Operator selectable display language
  • Buzzer
  • Built-in USB interface
  • Up to 14 locks

Lock Unit

  • Adaptable bolt function: Dead bolt/Spring bolt**
  • Latch bolt version** available
  • 5 N moving force in both directions
  • Dead bolt with 2 threads M4
  • Up to 14 locks per input unit

e-Box

  • Networkmodul
  • 5 x Outouts potential-free
  • 5 x Inputs contact-controlled
  • 2 x Axessor-Bus
  • 1 x LAN
  • 1 x external power supply

Axessor IPNOT Feature* **

  • Input 2 configurable for emergency opening*
  • (-> AS284-W -> Inputs -> assign input 2 to emergency opening -> invert input 2)
    • Remarks:
      • No VdS approval
      • No UL approval

* with Programming Software
** non-VdS

Technical Details

Variants

  • Axessor IP
    • Metal housing in black, red navigation keys
    • Built-in USB interface for audit output and programming by computer
    • Built-in terminals for alarm connection
    • e-B@x Networkmodul (optional)
  • Axessor IPNOT
    • Metal housing in black, red navigation keys
    • Built-in USB interface for audit output and programming by computer
    • Built-in terminals for alarm connection
    • Input 2 configurable for emergency opening
    • e-B@x Networkmodul (optional)
      • Remarks:
        • No VdS approval
        • No UL approval

Software

  • Installation Software AS 280-W for network preparation
    • Runs on Microsoft® Windows® operating systems
    • Operator selectable language
    • Software package including cable and dongle (copy protection)
  • Software Development Kit AS 283 to integrate Axessor lock in third party software
    • Runs on Microsoft® Windows® operating systems
    • Software package including dongle (copy protection)
  • Programming Software AS 284-W
    • Runs on Microsoft® Windows® operating systems
    • Operator selectable language
    • Software package including cable / dongle (copy protection)
  • Audit-Software AS 286
    • Runs on Microsoft® Windows® operating systems
    • Operator selectable language
    • No dongle needed

Funcționalități

Code Functions

  • Dual mode for opening (from same, different or any group)
  • Dual mode for programming
  • Individual or group code denial
  • Wrong try lockout after 4 false codes
  • Duress code (silent alarm)
  • Shelve function

Time Lock Functions

  • Normal time delay
  • Duress time delay
  • Confirmation window
  • 8 time lock interruptions windows
  • Non-return time delay
  • Remote opening disable
  • Automatic DLST (summer/winter time changeover)*
  • Holiday periods
  • Yearly repeating holiday periods
  • Weekly time lock
  • Fast locking

Other Functions

  • Low voltage detection
  • Battery status display
  • Non-erasable opening counter
  • Selectable display of next opening time
  • Error diagnosis, recognition and display

Applications

AS284-NETW Programming Software

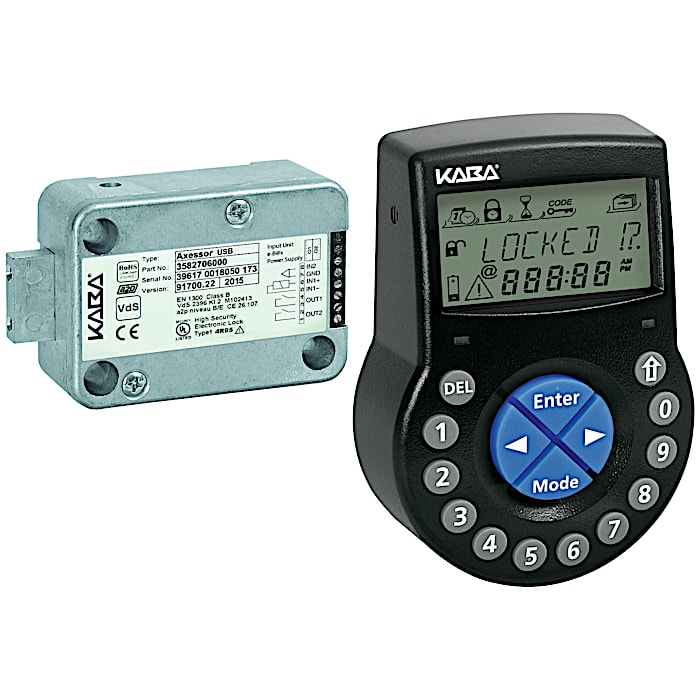

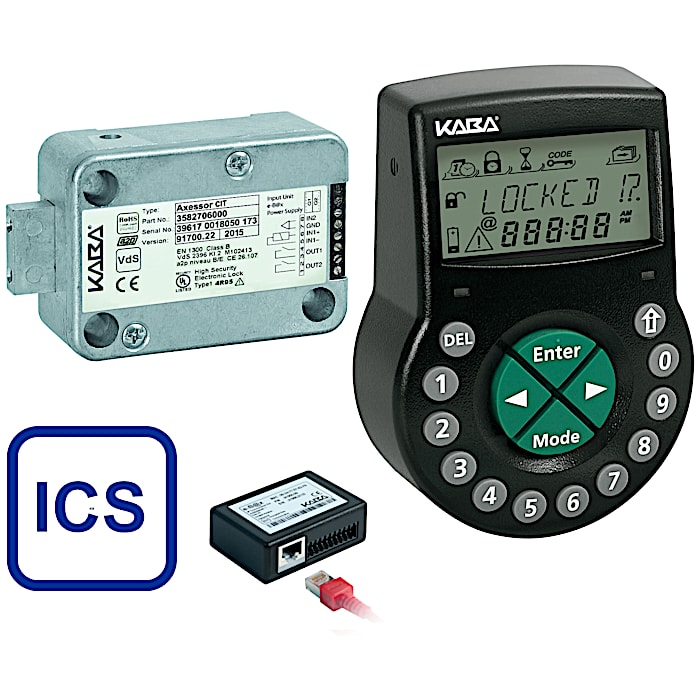

Use the AS284-NETW software to configure and parametrize Axessor Series products like Axessor USB (stand alone only), Axessor IP and Axessor CIT.

In Axessor IP or Axessor CIT systems software AS284-NETW can be used for remote administration or networked operation in general (by using eBox).

Axessor IP
