Product Summary

With its broad spectrum of basic types and variants, the dormakaba Universal range of patch fittings enables the realisation in creation of toughened glass constructions of almost any conceivable design. Toughened glass assemblies can be provided with fixed parts components in widely differing arrangements - with corner fittings or fin fittings at different angles, and with double or single action doors in single-leaf or double-leaf designs

  • Easy glass preparation, secure fixing
  • Suitable for common glass thickness
  • Variable pivot point
  • Reliability built in
  • Matching range of locks
  • Short delivery times

Product Details

Universal fittings

These fittings are supplied as standard with gasket to suit 10 mm glass. For 8 mm and 12 mm glass, correspondingly thicker and thinner gaskets are available.

Suitable for most applications

The inserts for corner and overpanel patches in the Universal program range have been designed and manufactured to give two options forin the pivot point distance from the sidepanel sidelight or frame. It can be  – either 55 mm or 65 mm.

Easy glass preparation, secure fixing

DORMA-Glas has an intimate knowledge of the special properties of glass as a building material. This has led to the design of fittings requiring only minimal glass preparation – a quick and easy cut-out with additional holes. Carefully considered and positive measures have been taken to create the maximum contact surface area for optimum clamping efficiency.

Matching range of locks

The Universal range includes every type of accessory and of course, a variety of locks and strike boxes in a matching design concept, giving the architect or specifier plenty of options to choose from.

Technical Details

  • Max. door leaf weight, 110 kg
  • Max. door leaf width, 1100 cm
  • Can be implemented with door rails up to 150 kg and 1400 cm

You can find additional technical information in the technical documents for download


For indoor and outdoor use, e.g.

  • Doctor's offices
  • Hotel rooms
  • Schools and universities
  • Shop fronts
  • Office rooms
  • Private residences

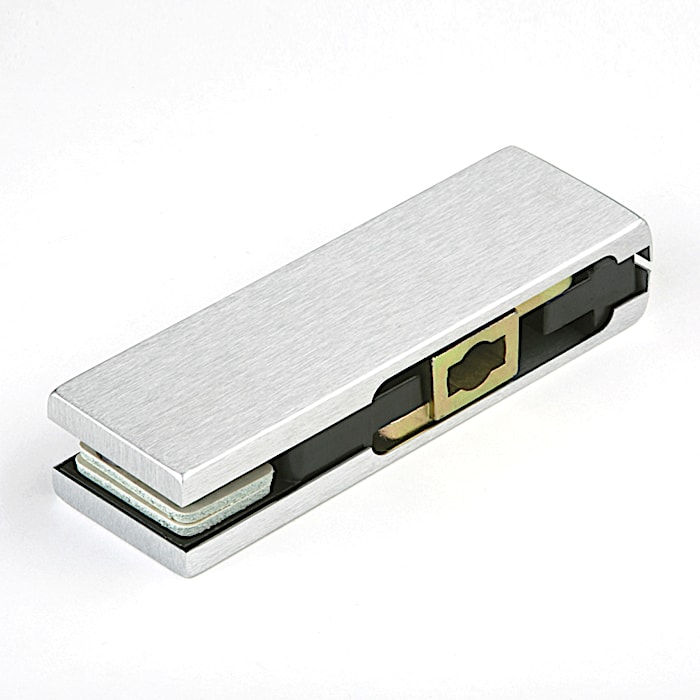

Corner fitting UNIVERSAL
