Product Summary

Whether for visitors, suppliers or external employees, allowing access authorisation in a quick and dynamic way is more important than ever today and a factor for successful work.

With their Mobile Interface 90 60, dormakaba provides the perfect solution to meet this requirement. Together with the dormakaba app, authorisation can be conveniently assigned to a corresponding smartphone, allowing it to be used as a means of access.

Whether for the extension of existing dormakaba access systems or as a wide-range solution for access management of entrances, the dormakaba Mobile Interface 90 60 is the perfect solution for meeting these requirements.

For outdoor areas, a weather-resistant variant with IP66 class of protection and outgoing cables is available.

Product Details

  • Wide-range solution for access control at entrances
  • Mobile access for upgrading existing access control systems
  • Smartphone for identification and assignment of permissions
  • Class of protection IP 54 and optionally IP66

Technical Details

Construction / Material / Dimensions

  • 35 x 122 x 16 mm (W x H x D)
  • Front: PC plastic, scratch-resistant coating; colour: RAL 9005 jet black
  • Back: Plastic, matt chromed; colour: RAL 9006 white aluminium
  • IP66 variant: sealed cable, 3.5 m length

Interfaces

  • RS-485: Connection to host; electrically isolated, differential

Power supply

  • 12–27 VAC, 50/60 Hz or 10–34 VDC
  • Power consumption: typically 1.2 W, max. 2.2 W

Environmental conditions

  • Temperature: –25 °C to +70 °C
  • Class of protection IP66 variant cast (outdoor)
  • Humidity 0 to 95%, non-condensing (standard)

Applications

The Mobile Interface 90 60 can be used in a number of situations:

  • Garage doors
  • Parking barriers
  • Exterior doors and gates
  • Automatic doors

dormakaba Mobile Interface 90 60 right

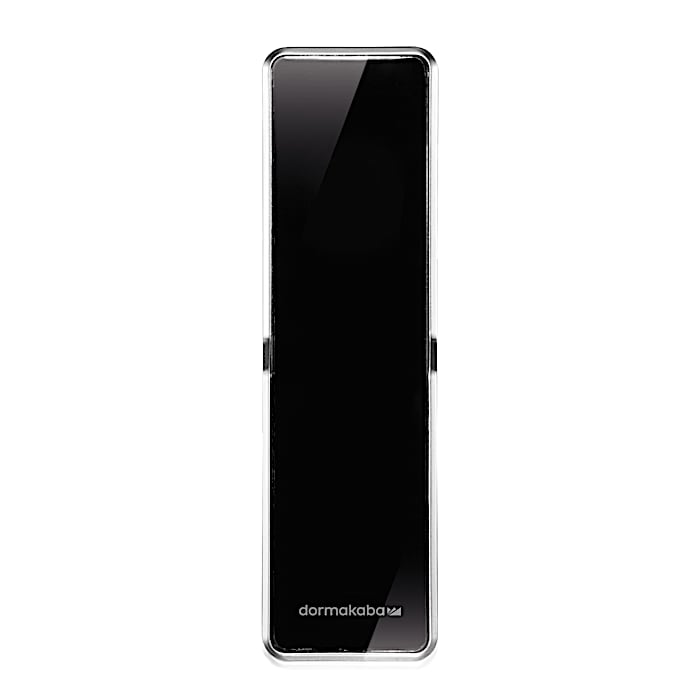

dormakaba Mobile Interface 90 60 front

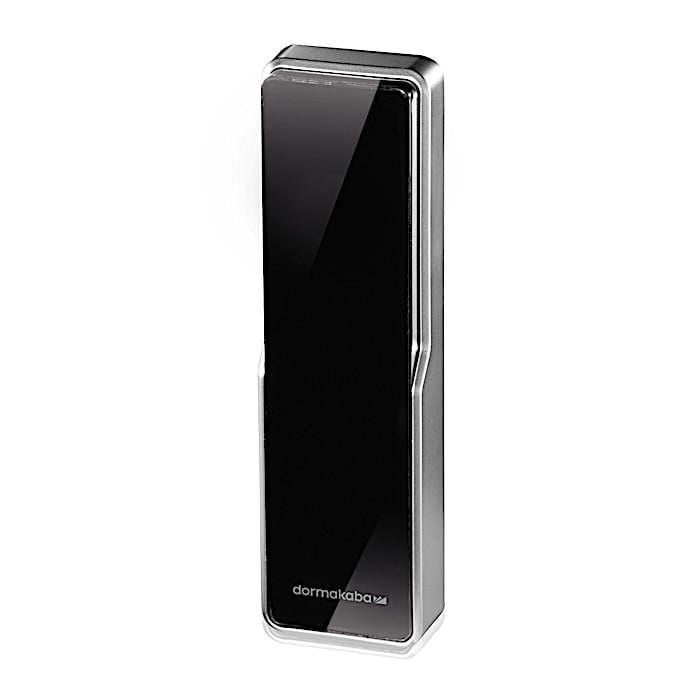

dormakaba Mobile Interface 90 60 left
