Product Summary

dormakaba offers an assortment of specialized peripheral products designed to enhance the flexibility and capability of Keyscan access control systems. These reliable products are designed to be compatible with Keyscan systems. The Keyscan peripheral products expand systems for additional input and output capability. These expansions can help improve monitoring and support auxiliary security systems such as motion detectors, glass breaks, and exit only door sensors. There are also specific peripherals that help to overcome limitations, such as communication signal extenders for greater distance between access control units.

Peripheral Product Options:

  • IOCB1616
  • OCB8
  • WIEEX2
  • DPS-15
  • CIM (Communication Interlink Module)
  • CIM-Link
  • NETCOM2
  • NETCOM2P

Product Details

IOCB1616
Operators rely on the IOCB1616 when high-level system design calls for additional input and output capabilities. The Keyscan IOCB1616 provides 16 additional inputs with 16 additional open collector outputs. It features new DIP switch banks for easy installation, set up, and feature configuration. This input and output expansion board is ideal for monitoring exit only doors, glass breaks, motion detectors, and any other sensing device through a Keyscan system. The Keyscan IOCB1616 can be chained together with up to four IOCB1616 boards for use with the CA4500 and CA8500.

  • I/O board with 16 supervised inputs and 16 digital outputs
  • For adding additional I/O boards to IOCB1616 enclosure or service replacement of existing board (maximum of 4 board/IOCB1616 per ACU)
  • Works with Rev. 10 ACUs and higher
  • New smaller board
  • Inputs can monitor contacts on doors, motion sensors, push buttons, or other sensing devices
  • Outputs can activate CCTV cameras, burglar alarm systems, lights, HVAC, parking lot gates, or other devices
  • Single or multiple inputs can be assigned to trip single or multiple outputs – either open collector or optional form ""C"" relays – using any of the 7 different modes that include timers, delays, or pulsing
  • Time zones can be assigned to activate and deactivate inputs or outputs
  • The access control unit communicates to the IOCB1616 boards via RS485 over twisted pair cable
  • Includes a black metal enclosure with ample room to mount multiple IOCB1616 board configurations for flexible installation and wiring
  • Board only (without enclosure) also available. Part: IOCB1616b

OCB8
The OCB8 is a durable and reliable Form-C relay output board designed as a dry contact closure for Keyscan’s door and elevator floor controllers, and auxiliary equipment. The Keyscan OCB8 provides auxiliary service expansion such as additional doors or elevator floor stops. OCB8 can also trigger secondary responses such as sirens, alarms, strobe lights or increase access restriction parameters with the Keyscan EC1500, EC2500, CA4500, or CA8500 controllers. The OCB8 is time programmable and features a DIP switch bank for easy changes to state of relays.

  • New DIP switch plug on board with independent reverse pole switches for relay control
  • Works with all current and previous ACU/ECUs
  • Add auxiliary outputs to Keyscan CA4500 and CA8500 door controllers to trigger response such as sirens, alarms, strobe lights or further restrict access
  • Time programmable (via software)

WIEEX2
The WIEEX2 expands the distance between access control panels and readers that support the Wiegland data format. The Keyscan WIEEX2 provides greater installation flexibility with a cable distance of up to 4000ft in hard to reach locations. The Keyscan WIEEX2 built-in door status monitoring, unlock relay, and request to exit inputs also reduce installation costs. The Keyscan WIEEX2 ensures compatibility with any Wiegand compatible access control unit through converting the Wiegand signal to standard RS485 communications between the transmitter and receiver.

  • Converts the Wiegand signal to standard RS485
  • Provides a communication range of up to 4000 feet between WIEEX2 receiver and WIEEX2 transmitter while using standard CAT5 cable between access control units

DPS-15
The DPS-15 is a dual linear DC power supply designed for an access control unit panel, readers and auxiliary outputs. Keyscan’s DPS-15 functions with 2 x 16 VAC 40 VA transformers and supply an output of 2 x 12 VDC 1.2 amperes. The Keyscan DPS-15 is included with Keyscan’s door and elevator floor controllers (CA250, CA4500, CA8500, EC1500, & EC2500).

  • The DPS-15 supplies up to 1.2A for each of two segments
  • A DPS-15 is included with each of Keyscan CA series door controllers and EC series elevator floor contollers

CIM (Communication Interlink Module)
The CIM is a communication control module designed to use a CAN Bus communication network. Keyscan’s CIM provides optimized server to access control unit (ACU) communication. The Communication Interlink Module creates a new inter-panel ACU to ACU communication network that provides global communication functions including anti-passback, global input/output and global time zones. The CIM includes an impressive host of new features including ground loop protection, enhanced diagnostics, improved speed and unprecedented reliability.

  • Provides optimized server to Access Control Unit (ACU) communication
  • Gives users a new ACU to ACU network providing inter-panel communication for global functions
  • Standardized Cabling establishes communication links with CAN Bus communication protocol using standard CAT5 cabling
  • Ground Loop Tolerance maximizes electrical isolation to earth ground providing tolerance against ground loops
  • Fault Tolerance ensures if one CIM fails it won’t take the loop down with it. The CAN Bus protocol offers non-interrupted communication of remaining devices on the network
  • Communication Speeds provides optimized communication speeds, up to 115K BPS
  • Enhanced Diagnostics for quick and easy troubleshooting
  • Auto Bit Rate Configuration to automatically match bit rate speed with control unit configuration
  • Supports Keyscan’s plug-on TCP/IP network adapter NETCOM2P/6P
  • Uses a simplified ribbon cable connection to control unit for fast installation
  • Access Control Units with direct connectivity with the CAN Bus network now provide ACU to ACU communication without server dependence. This permits a host of new features and capabilities

CIM-Link
The CIM-Link is designed as a TCP/IP companion module which incorporates multiple CIM CAN Bus communication loops into a single global infrastructure. The Keyscan CIM-Link module extends CAN Bus based access control unit (ACU) communications via a common LAN/WAN network. This maximizes system design flexibility by expanding ACU to ACU functionality to multiple independent CAN Bus global networks utilizing a common LAN/WAN infrastructure.

  • Maximizes system design options
  • Promotes greater global communication flexibility
  • Expands ACU to ACU functionality to multiple independent CAN Bus global networks
  • Ground Loop Tolerance maximizes electrical isolation to earth ground providing tolerance against ground loops
  • Enhanced Diagnostics provides communication diagnostics annunciated with on-board LEDs for quick and easy device-based troubleshooting
  • Uses Keyscan’s plug-on TCP/IP network adapter NETCOM2P/6P
  • TCP/IP Tunneling ensures uninterrupted and reconnect continuous communication between CIM-Links
  • Supports global functions between groups of multiple ACU panels or between a single ACU panel over an existing LAN/WAN network
  • Utilizing the CAN Bus network, the CIM-Link delivers global communication capabilities. Access Control Units with direct connectivity with the CAN Bus network now provide ACU to ACU communication without server dependence
  • Uses a simplified ribbon cable for fast installation
  • Fault tolerance ensures if one Keyscan CIM-Link goes down, it won’t take the loop down with it. The CAN Bus communication protocol offers non-interrupted communication of remaining devices on the CAN Bus network

NETCOM2
The NETCOM2 is an ‘off-board‘ TCP/IP communication module designed to establish access control units as a network-appliance based unit. The Keyscan NETCOM2 functions with new and legacy access control units and allows a quick connection to an existing LAN/WAN network infrastructure. NETCOM2 features DIP switches for convenient set up and is programmable for easy configuration when establishing communication along a network infrastructure.

  • Features embedded IP addresses for programming the device on a local network
  • Provides serial connection from the ACUs via 10/100 RJ45 network interface to communicate with a server or PC host
  • Use static TCP/IP addresses to allow communication over an existing LAN/WAN network
  • Unlimited units can be added to a system, offering an enterprise solution
  • Fast, easy, trouble-free off-board installation
  • Allows one or more Access Control Unit(s) to communicate on a LAN/WAN
  • DIP switch settings for convenient configuration
  • Fast and easy installation for each ACU
  • Static TCP/IP communication protocol between PC NIC (Network Interface Card) and Access Control Unit(s) featuring NETCOM2
  • Requires Static IP addresses for proper operation
  • Simplifies both installation and maintenance procedures

NETCOM2P
The NETCOM2P is a plug on TCP/IP communication adaptor module that connects directly to Keyscan networked access control systems. The Keyscan NETCOM TCP/IP communication adaptor modules function as a fast and easy way to connect a Keyscan Access Control system to a LAN/WAN network. The adaptors plug onto the CIM for network communication or directly onto the control board for single access control unit applications.

  • Where higher security is required for communication, use the NETCOM6P with AES Rijndael (NIST approved) encryption algorithm
  • A user-defined encryption key, which can be can be 128 bits, 192 bits, or 256 bits, minimizes the possibility of communication breach
  • Includes a Keyscan NETCOM Program Tool utility for custom installation programming
  • Also available as an off-board module, NETCOM2 for legacy panels and select integrations
  • Fast and easy installation for each ACU
  • Requires Static IP addresses for proper operation
  • Simplifies both installation and maintenance procedures
  • Easy to program with included utility



Technical Details

IOCB1616

Dimensions: Board: 10 5/8"" x 3 9/16"" (26.9 x 9.1.cm)

Enclosure: 20 1/4"" x 16 3/8"" x 5 5/8"" (51.4 x 41.6 x 14.3 cm)

  • Power: 12 VDC, 100 mA board only, 300 mA lock power limit
  • DPS12 (AUX): - 12VDC Output, 1.2A
  • Cable: maximum distance from ACU to last IOCB1616 is 2000 feet using 2-wire twisted pair
  • Environment: Suitable for commercial and industrial applications
  • Relative humidity: 0% to 90% R.H., non-condensing
  • Operating temperatures: -4° to 160° F (-20° to 71° C)
  • Storage temperatures: -4° to 185° F (-20° to 85° C)

DPS-15

Dimensions: 3 7/8” x 4 1/16” (99 mm x 103 mm)

  • Dual linear DC outputs:
    • ACU output 12 VDC @ 1.2 Amperes
    • AUX/RDR output 12 VDC @ 1.2A
  • The total current draw on each output should not exceed 1 Amp with 200mA in reserve for accommodating peak current operating demands
  • Weight: 0.45 lbs (0.2 kg)
  • Power requirements: Two (2) 16V 40VA or 16.5V 37VA Class 2 CSA/UL approved transformers
  • DPS-15 is designed to power the Keyscan ACU/ECU and select readers (use current supply calculator to determine draws for each access control component
  • Electronic access controls including strikes and magbars and other peripheral devices should be powered by a separate supply

CIM (Communication Interlink Module)

Dimensions: 4 5/8” x 3” (11.7 cm x 7.6 cm)

  • Operating voltage: 12 VDC
  • Current draw (CIM only): 150 mA
  • CIM with NETCOM2P/6P: 290 mA
  • Topology: Linear
  • Network support: Standard, Encrypted, Reverse IP
  • CAN Bus:  CAN Bus 1 - Server to ACU communication; CAN Bus 2 - ACU to ACU global communication
  • Firmware: Minimum EPROM versions 7.40/8.20
  • Software: Keyscan Aurora and System 7.0.16 or higher

CIM-Link

Dimensions: 4 5/8” x 3” (11.7 cm x 7.6 cm)

  • Operating voltage: 12 VDC
  • Current draw (CIM-Link): 290 mA (each_
  • Operating environment: 32° F – 140° F (0° C – 60° C)
  • Topology: Linear
  • Network: Requires LAN/WAN (TCP/IP) infrastructure
  • Network support: Standard, Encrypted
  • CAN Bus: Requires connection to CAN Bus 2 ACU to ACU global communication
  • Firmware: Minimum EPROM versions 7.40/8.20
  • Software: Keyscan Aurora (will also function using System 7.0.16 or higher)

NETCOM2

Dimensions: 3.031” x 3.896” (7.7 x 9.9 cm)

  • Input power: 12 VDC, 270 mA, powered by DPS15
  • Cable Length
  • ACU/ECU to NETCOM: 22 AWG 5 conductor shielded, 100ft (30 m)
  • CIM to NETCOM: 22 AWG 5 conductor shielded max 49.2’ @ 9600 baud
  • Network communications: Existing LAN/WAN (TCP/IP protocol port 3001)
  • Agency approvals: Ethernet socket: Complies with Class B limits of EN 55022 : 1998; Direct and indirect ESD Complies with EN 55024 : 1998
  • Environmental tolerances: Suitable for commercial and industrial applications
  • Operating temperature: 5° to 70°C (41° to 158°F)

NETCOM2P

Dimensions: NETCOM2P/6P = 1.625” x 1.9375” (41mm x 49mm)

  • Input power through ACU: 140 mA, + ACU 130 mA = 270 mA
  • Input power through CIM: 140 mA + CIM 150 mA = 290 mA
  • Network interface: RJ45 10/100 Ethernet
  • NETCOM6P: Available with AES Rijndael encryption
  • Agency approvals Ethernet Socket: Complies with Class B limits of EN 55022 : 1998 Direct & Indirect ESD Complies with EN 55024 : 1998
  • Environmental tolerances: Suitable for commercial and industrial applications
  • NET6P-KHS (Keyscan Hosted Services only): DHCP IP set up; AES Rijndael encryption; Pre- configured to connect with Keyscan Servers
  • Operating temperature: 5° to 70°C (41° to 158°F)

CIM Peripherals Controllers Keyscan EAD

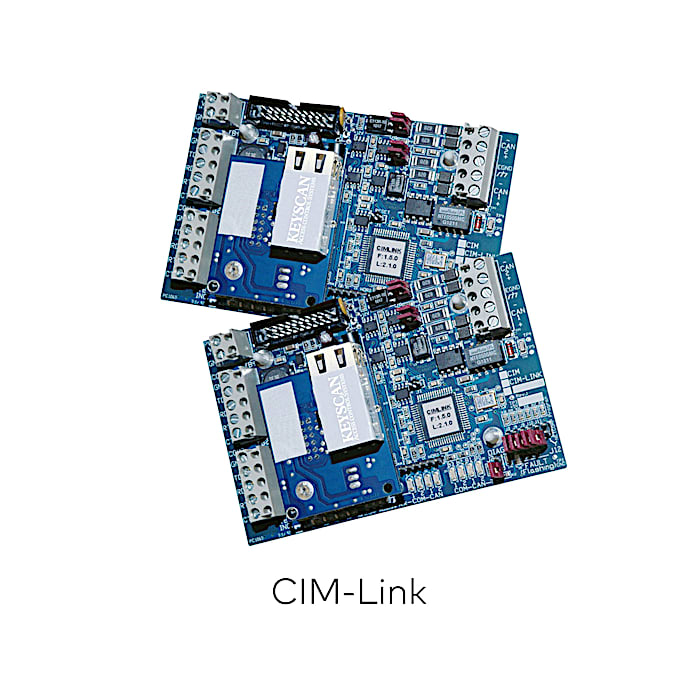

CIM Link Peripherals Controllers Keyscan EAD

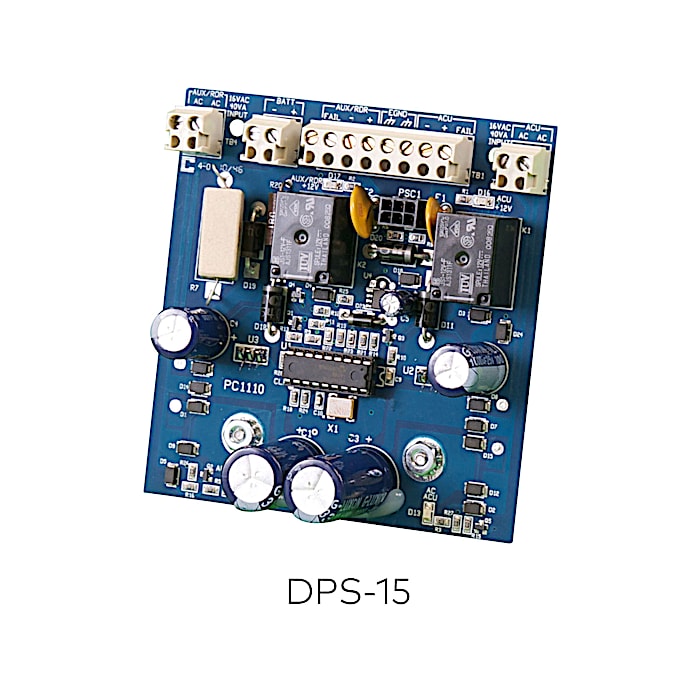

DPS 15 Peripherals Controllers Keyscan EAD
