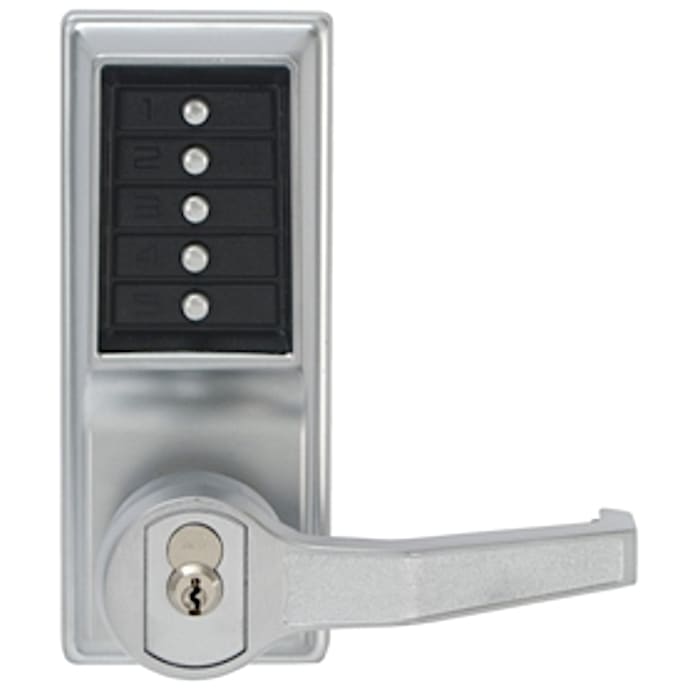

Simplex L1000 - Lever

  • Simplex L1000 Series LR1021/1041*-26D Satin Chrome

    1/2Simplex L1000 Series LR1021/1041*-26D Satin Chrome

  • Simplex LR1021* / LR1041*-26D Right Hand Satin Chrome

    1/2Simplex LR1021* / LR1041*-26D Right Hand Satin Chrome

  • Simplex L1000 Series LR1021/1041*-26D Satin Chrome
  • Simplex LR1021* / LR1041*-26D Right Hand Satin Chrome

Product Summary

Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards.

The Simplex L1000 Series provides exterior access by combination, while allowing free egress. This mechanical lock, with lever option, elimates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.

Product Details

Locking Device: Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors

Number of Codes: Single access code—one easy-to-manage code for all users

Programming: Lock is easily programmed via keypad without removing lock from the door

Handing: Factory-handed; not field reversible

Key Override (Optional):

  • Interchangeable Cores: Small format—Best and equivalents (6 or 7-pin length); core not included
  • Removable Cores: Large format—Medeco/ASSA/Yale/Abloy (5 or 6-pin length); Corbin Russwin (6-pin length); Schlage, and Sargent; core not included

Operation Modes:

  • Pushbutton Access
  • Passage (select models)—allows access without using the lock entry code. Feature activated from the inside with a thumbturn or key (included with all passage feature models).
  • Privacy (select models)—disables the lock from the inside so that the entry code cannot be used to gain access. Access is permitted using the key override only when in this mode.

Economical: A cost effective access control solution
