dk Tech 120

The dk Tech 120 automatic sliding door drive features a new controller and high torque motor that can accommodate a load of 2×120 kg for wider entrances.

dk Tech 120
  • High-torque brushless DC motor for large and heavy door leaves
  • Self-adjusting, low-friction wheel system for quieter and smoother operation
  • Suitable for intensive use: tested for 1,000,000 opening and closing cycles
  • Optimized control system providing enhanced safety
  • Carrying capacity up to 240 kg for double-leaf door applications in wide entrances
  • Optional backup battery enabling operation during power outages

Product Details

DK Tech 120 is a powerful and reliable automatic sliding door operator developed for wide entrances. With its high-torque motor and optimized control system, it delivers high performance in areas requiring intensive use.

Thanks to its advanced control unit, safe opening and closing functions, and optional backup battery support, DK Tech 120 is an ideal solution for a wide range of applications such as shopping malls, hospitals, hotels, office buildings, and public facilities.

Door Parameters

  • Single-Leaf Door
    • Net opening width: 700 – 2500 mm
    • Door leaf weight: Max. 130 kg
  • Double-Leaf Door
    • Net opening width: 700 – 3000 mm
    • Door leaf weight: Max. 2 × 120 kg

Technical Details

  • Operator height: 100 mm

  • Operator depth: 180 mm

  • Manual opening force (without power supply): <150 N

  • Opening speed: 10–45 cm/s

  • Closing speed: 10–40 cm/s

  • Hold-open time: 1–11 seconds

  • Power supply: 230V 50/60 Hz

  • Maximum power: 150 W

  • IP protection: IP20

  • Operating temperature: -20 °C – 50 °C

Functionalities

Control Unit

dk Tech 120 is equipped with an advanced microprocessor-controlled system and can be programmed to adapt to different usage scenarios.

  • Program options:

    • Closed

    • Automatic

    • Exit

    • Fully open

    • Partially open

  • Control functions:

    • Microprocessor control system

    • 5-position key-operated program switch

    • Self-learning function

    • Automatic reopening when an obstacle is detected

    • Secure opening for access control

    • Safe entry function

  • Optional Accessories

    • Backup battery (operation during power failure)

    • Continuous operation mode

    • Hold-closed function

    • Emergency opening

    • Emergency closing

Certification

  • CE certified

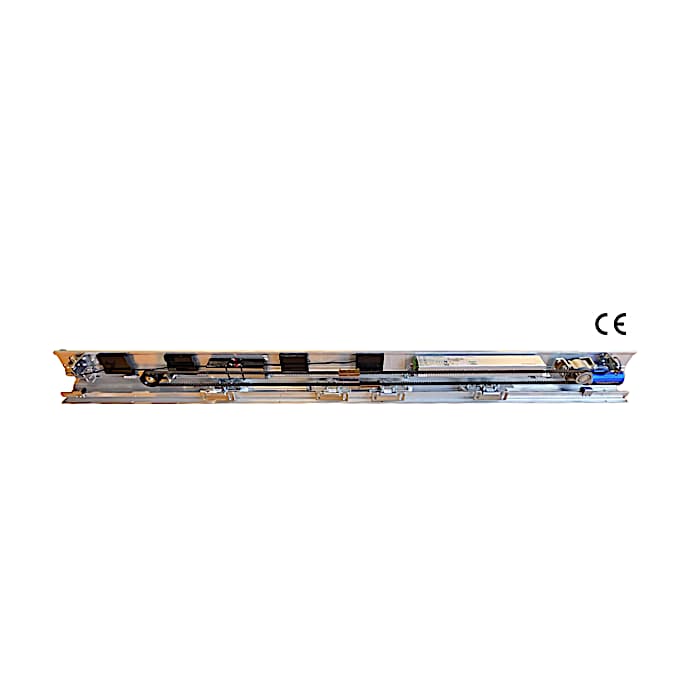

dk Tech 120

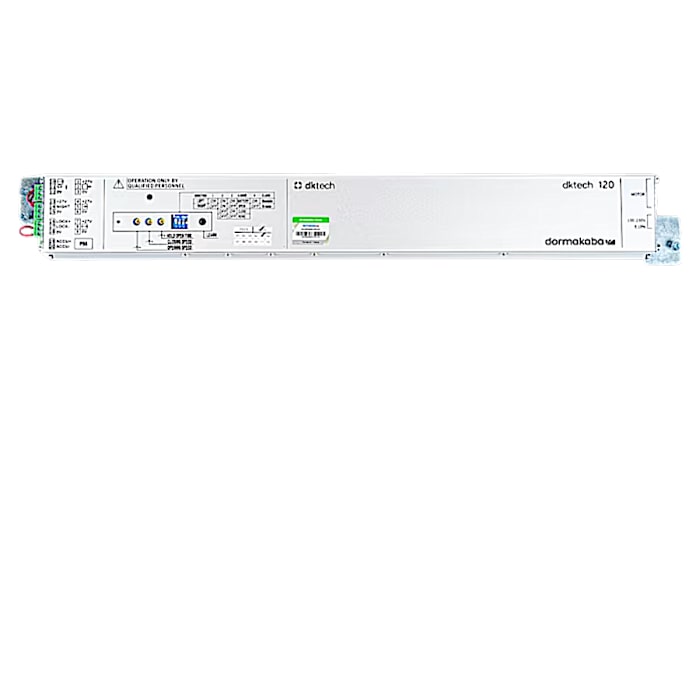

dk Tech 120 drive unit
