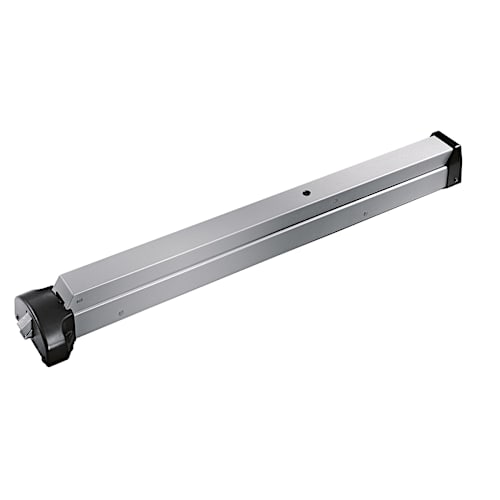

QED200 Exit Device

Heavy-Duty Narrow Stile Exit Devices

dormakaba’s Commercial Hardware QED200 Series of narrow stile exit devices combines premium design with industry-leading performance. With features to make installation quick and easy, the QED200 Series fits any wood, steel or aluminum narrow stile door.

  • Available in Rim, Surface Vertical Rod (SVR) and Concealed Vertical Rod (CVR) types
  • Available in 3 finishes: 313AN: Anodized; Duranodic Bronze; 605: Bright Brass; 626: Satin Chrome
  • Accommodates 26" – 48" wide doors. The 36” device is field sizeable to fit 26" – 36" wide doors while the 48” device is field sizeable to fit 36" – 48" wide doors

Detalles del producto

Consistent styling

  • dormakaba Commercial Hardware products are designed with the same aesthetic features, so it’s easy to maintain a consistent styling throughout your facility.

Exceptional safety

  • The QED200 series is BHMA/ANSI Grade 1 certified, and significantly exceeds performance requirements. The series includes a thru bolt design for enhanced security and durability.

Easy installation

  • The QED200 series comes non-handed and field reversible, and are also field sizeable to fit non-standard doors

Industry-leading warranty

  • Lifetime mechanical warranty
  • 3 year finish warranty

Detalle técnicos

Certifications:

  • ANSI/BHMA A156.3 Series—Grade 1
  • ANSI A117.1 Section 404.2.6 Accessibility Code (ADA compliant)
  • UL/cUL listed (3 hour) for “A” label door applications (8’ by 8’) when used with HMS strike
  • California Administrative Code Title 24 compliant for lever trims

Sizing & Measurements:

  • 36" field sizeable to 32" door
  • 48" field sizeable to 36" door
  • Standard door thickness: 1-3/4" (44.5mm) Can accommodate doors up to 2-3/4" thick with use of Thick Door Kit
  • SVR and CVR door height: 7' standard with 84" rod; 8' with 96" rod
  • Rim stile width: 2" (50.8mm) minimum for ALS strike; 3-1/2" minimum (89mm) for HMS strike option
  • SVR stile width: 2" (50.8mm) minimum
  • CVR stile width: 3-1/2" (89mm) minimum

Keying:

  • Keyway options include: BF-SFIC “F”, KW-Kwikset, WE-Weiser, SC-Schlage, GA-Yale, LA-Sargent, LC-Less Cylinder

Aplicaciones

The QED200 is a cost-effective option for aluminum storefront doors in non-institutional applications such as retail, hospitality and commercial office spaces.
