Auditcon 2 Model 52/T52

The totally self-powered (PowerStar® Technology) Auditcon® offers the advantages and convenience of true stand-alone electronic safe access. It was developed to address the security requirements of a broad range of retail, commercial and industrial markets.

The model 52 is supplied with all basic functions for residential and commercial applications with the convenience of electronic locking.

Alternatively, the T52 is available with time delay functions.

Safe Lock 52 Series - Input unit vertical

2 users
6 digit access
Replaces mechanical Group I and Group II locks
Round or vertical housing
Dead bolt or swing bolt available
EN 1300 B, VdS class 2

Product Details

Codes

1 Super Master Combination
2 User Combinations

6 Digit Access
Users select their own changeable combination.

Dual Custody
Two Person Integrity, which requires two users to open the lock.

Manager/User Operation
Allows manager to add, delete, enable or disable an additional user.

Numerical Keypad
Quick Entry.

Wrong Try Lockout
The lock will not allow access to any user for a period of 3 minutes after 5 incorrect combinations are entered. Any additional consecutive failed entry attempts result in another 3 minute lockout.

Easy Retrofit
The lock case has the same footprint as most mechanical locks making it easy to install.

Time Delay Mode (Model T52 only)
Programmable 1-99 minutes before access is allowed.

NOTE: Remote Time Delay Display Unit (p/n 307025) can be purchased separately. Please refer to the List Price Book for a complete list of options and accessories.

Technical Details

Agency Approvals/Certificates

UL Type l high security electronic locks
SBSC High Security (Sweden, Denmark, Norway,
Finland), VdS Class 2 (Germany), CE, EN 1300
Class B (EU)

Electronic Specifications

Power Unit: Solenoid driven.

Power Source: PowerStar® technology - Internal generator creates power when dial is rotated. No battery necessary.

Battery Assist: One 9-Volt Alkaline (not included). Featured during Time Delay and Open Window periods. Also provides additional power during lengthy operations.

Product Variants

52 - basic functions
T52 - basic and time delay functions

Input Units

Plastic housing with silicone rubber tactile keypad, 2 LEDs and buzzer

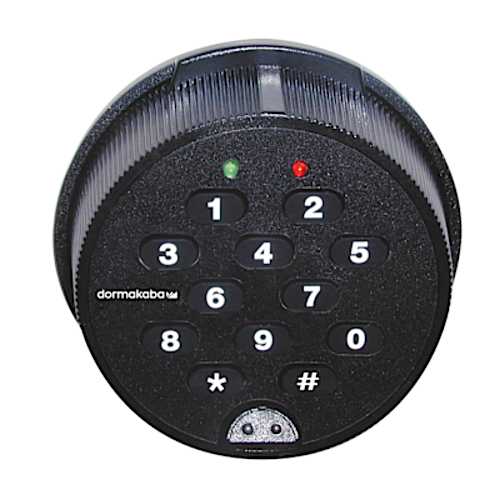

Round housing, buttons in the face of the lock
Vertical housing, buttons across the top of the lock

Lock Units

Dead bolt
- Lock case, solid cast zinc, flash and chromate conversion coat for corrosion resistance
- Industry standard container lock mounting pattern
- Bolt with tapped holes: M4 (2)
- Bolt movement (nominal): 11.8 mm
- Maximum load movable by the bolt: 22 N
- Maximum load against bolt when thrown (all directions): 1000 N
Swing bolt
- Lock case, solid cast zinc, flash and chromate conversion coat for corrosion resistance
- Industry standard container lock mounting pattern
- Square nose slide bolt
- Bolt movement (nominal): 11.8 mm
- Maximum load movable by the bolt: none
- Maximum load against bolt when thrown (all directions): 1000 N
