Product Summary

SVP locks automatically lock doors after each closing cycle – offering the ultimate in both convenience and security. The automatic deadbolt projection of 20mm ensures that the door is always securely locked. The additional anti-thrust engagement of the clawbolt latch provides two-point locking for enhanced security. Meanwhile, the emergency escape function means that the door can be opened at any time in the exit direction by simply operating the lever handle or panic bar. Mechanical opening from the outside remains possible at any time via a key to unlock the euro profile or round cylinder insert.

  • Emergency escape/panic function in accordance with BS EN 179 & BS EN 1125
  • Certified in accordance with BS EN 12209
  • CERTIFIRE approved
  • For narrow stile and timber doors
  • Automatic relocking action
  • Universal trip latch
  • With feedback contacts to signal door status

Product Details

Convenient, safe and secure

The SVP 4000 emergency escape lock is particularly suitable for project build doors of which the status needs to be monitored or which have been incorporated within an emergency exit control system. Thanks to the emergency escape function, the door can be readily opened by simply operating the lever handle or panic bar, while the automatic relocking mechanism ensures secure lock re-engagement once the door has closed.

With various monitoring functions

The feedback contacts of the lock allow the latch, deadbolt, cylinder and lever handle all to be monitored. The signaling functions of the SVP 4000 are particularly suitable for monitoring and ensuring the convenient operation of doors in emergency exit and escape routes, but can also be used to trigger alarm systems or for remote monitoring.

Operational versatility

SVP locks are available in different models suitable for over-rebated or flush-closing timber doors and also narrow stile doors. They are likewise flexible in terms of their installation position thanks to the non-handed (universal) trip latch. They have been approved as emergency exit locks for doors in escape routes and for use on fire and smoke check doors. When installing mortice locks onto fire doors please refer to the CERTIFIRE scope of approval for the locks, or where the fire door is not covered by the scope of the CERTIFIRE approval please always consult the fire door manufacturer before installing.

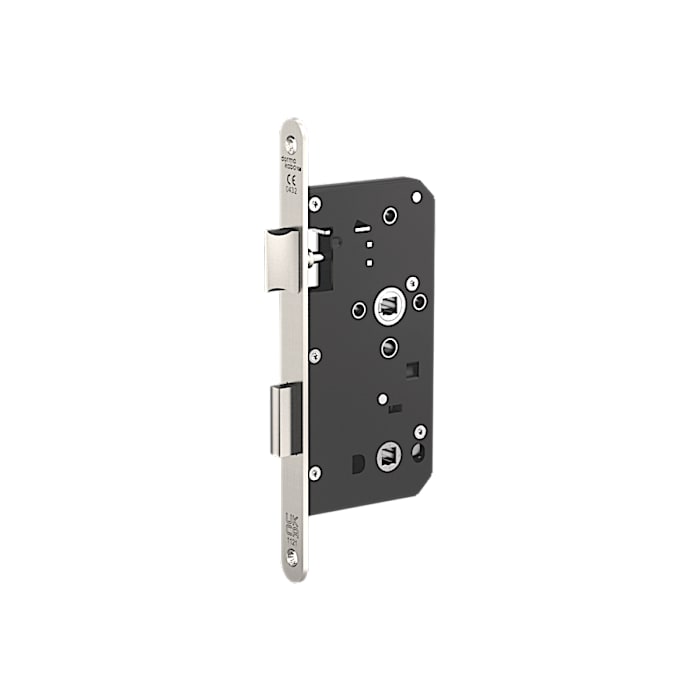

Lock SVP 4000
Lock SVP 4000
Lock SVP 4000 Frontansicht
