Product Summary

With UNIQUIN, you can perfect the overall impression of your room architecture. The system offers you profiles, fittings, and locking systems designed to complement each other, with powder-coated finishes for a uniform look. The graphite option is a typical UNIQUIN look, and its scratch-resistant properties make it a good choice for robustness. As well as additional coating options in white, grey and black, individual colors can also be chosen from the RAL range. UNIQUIN profiles hold partitioning elements made of glass, wood or other materials in thicknesses up to 19 millimeters.

  • Partitioning elements: Glass, wood and other materials up to 19 mm thickness
  • Integral sliding doors (glass 8 – 13.5 mm / wood 28 – 50 mm) and single action doors (glass 10 – 19 mm / wood 40 – 50 mm)
  • Access control systems ensure security
  • The possibility of integrating electrical/electronic modules supports functional use of space
  • Acoustic modules can be designed individually for pleasant ambient sound
  • Decoupled glass mount for reduction in sound transmission

Product Details

  • Integration of sliding doors (1 or 2-leaf)
  • Integration of single action doors in standard or room height
  • Can also be used as a doorframe system for single-door solutions set into brick walls

Technical Details

  • Material: Aluminum, powder-coated
  • Color: Graphite, scratch-resistant
  • Special colors: similar to DB 703; similar to EV 1; UNIQUIN white (RAL 9016); UNIQUIN black (RAL 9005); more RAL shades
  • Installation options: wall, floor, ceiling, inside/outside corners
  • Compatible with glass (ESG or VSG made from 2xESG) / wood and other finish materials in 10 – 19 mm thickness
  • Max. door measurements: single action door: 2950 mm (h) x 1100 mm (w); sliding door: 3000 mm (h) x 2000 mm (w)
  • Max. door weights: Single action door: 130 kg; sliding door: 80 kg
  • Emergency exit / panic function (optional): in accordance with EN 179 and EN 1125
  • Electrics: cable management within profile with connection to e-modules
  • Sound insulation: Sound protection up to 39 dB, depending on the assembly design

Components

Optional locks:

  • Standard lock prepared for profile cylinder or non-lockable
  • Electronic door fitting dormakaba c-lever compact
  • Self-locking panic lock prepared for profile cylinder
  • Panic fitting pushbar

Optional door components:

  • TS 97 for glass doors
  • Compatible with existing ITS 96 door closer integrated into timber doors
  • Drop-down seal for glass doors
  • Mounting box for socket and switch in doorframe area

Applications

As a room system or single-door solution.

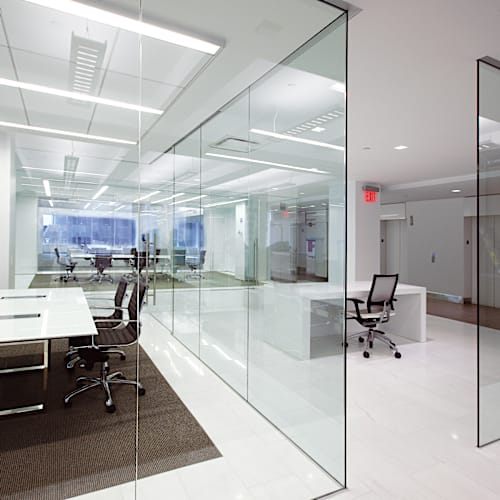

Access and room system UNIQUIN
