Product Summary

An attractive appearance is particularly important for architecturally high-quality living concepts and for blunt interior and intermediate doors.
The dormakaba magnetic latch lock cludo (lat. claudo = to close) meets these high demands.

Range of application:

  • for interior doors

ÖNORM versions:

  • Flat key (KB) with striking plate SB2, SB12, SB14 (only with black matt version - SWM) and SB30
  • WC and bathroom doors (WC) with striking plate SB2, SB12, SB14 (only with version black matt - SWM) and SB30
  • Profile cylinder (PZ) with strike plate SB2, SB12, SB14 (only with black matt - SWM) and SB30
  • Profile cylinder with change (WZ) with striking plate SB2, SB12 and SB30
  • Latch lock (FA) with striking plate SB6, SB14 (only with version black matt - SWM) and SB30

DIN versions:

  • Variegated (BB) with striking plate SB12 and SB22
  • WC and bathroom doors (WC) with striking plate SB12 and SB22
  • Profile cylinder (PZ) with striking plate SB12 and SB22
  • Latch lock (FA) with striking plate SB6

Product Details

  • Smooth, quiet door closing
  • Elegant appearance for premium residential concepts
  • Easy to clean as there are no protruding corners and edges
  • The striking plate plate is invisible when flush doors are closed
  • Supplied as a set (door lock and striking plate)
  • ÖNORM / DIN version
  • Plastic deadbolt: for ÖNORM version, backset 50 mm, incl. key brake for KB version Steel deadbolt: for all ÖNORM versions with backset 60 mm, WZ version and DIN versions
  • Plastic magnetic latch with integrated shock absorbers
  • Can be used right / left

Strike plates

  • SB6 ( 2-way adjustable)
  • SB2 ( 2-way adjustable)
  • SB22 ( 2-way adjustable)
  • SB12 ( 4-way adjustable)
  • SB14 (4-way adjustable, matt black - SWM)
  • SB30 (steel frame insert)

Technical Details

ÖNORM version

  • Round forend 250 x 18 x 3 mm in stainless steel or in black matt (SWM)
  • Hole center distance 88 mm for PZ / WZ, 90 mm for KB and WC
  • Backset 50 mm
  • Backset 60 mm (not available with forend finish black matt)
  • Lock case and cover made of ELO galvanized sheet steel
  • Plastic clamping nut
  • Square spindle 8.0 or 8.5 mm
  • Requirements and dimensions according to ÖNORM B5350, EN 12209:2006, utilization category 2

DIN version

  • Round forend 235 x 18(20) x 3 mm in stainless steel
  • Hole center distance 72 mm for PZ and BB, 78 mm for WC
  • Backset 55 mm
  • Lock case and cover made of ELO galvanized sheet steel
  • Plastic clamping nut
  • Square spindle 8.0 mm
  • Requirements according to EN 12209:2006, usage category 2

Functionalities

The function principle is just as simple as it is effective:

When the door is open the lock latch is flush with the forend. Invisible cylindric magnets in the latch head hold the plastic latch back in the lock case.

When the door is closed a high performance block magnet pulls the latch into the striking plate and holds it there. This makes the closing process quiet and smooth. Wear is significantly reduced by using a plastic latch and by the automated closing process.

Flat key (KB), black matt (SWM), striking plate SB14

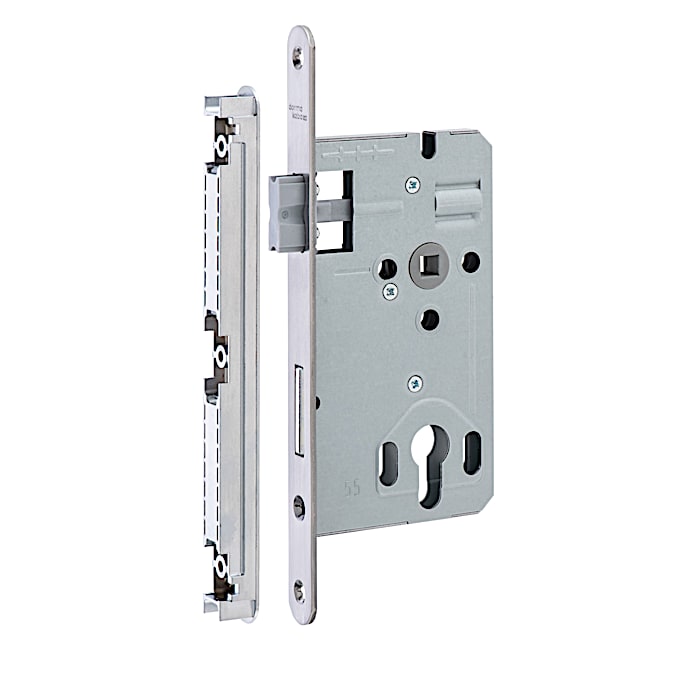

Profile cylinder (PZ), striking plate SB22

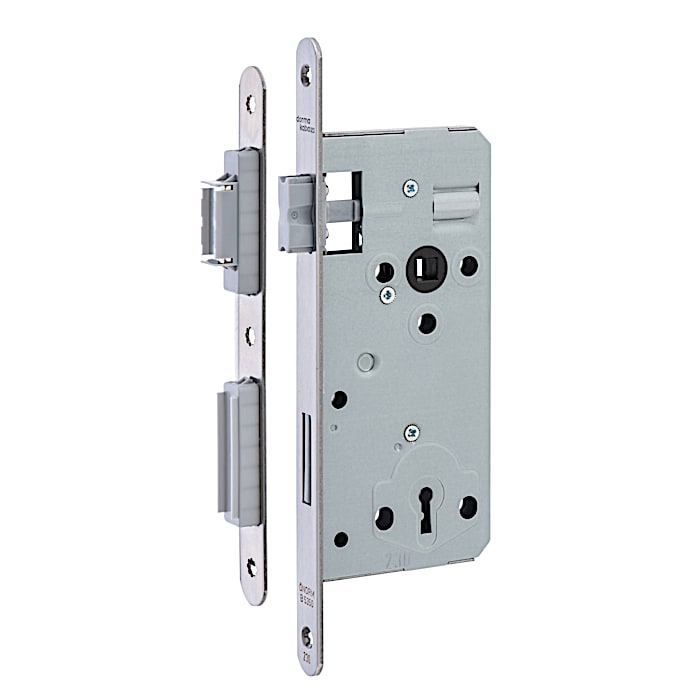

Flat key (KB), strike plate SB2
